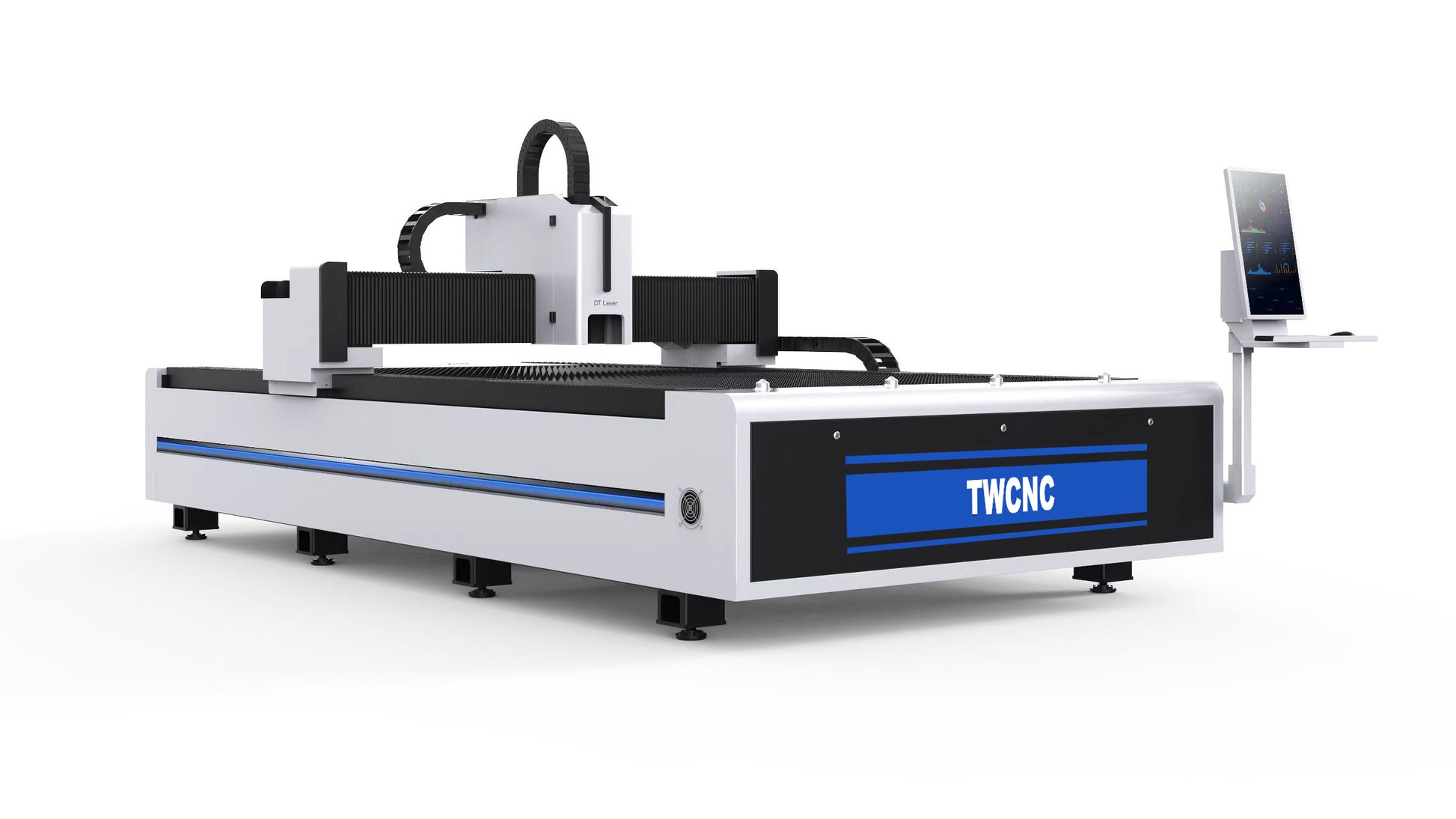

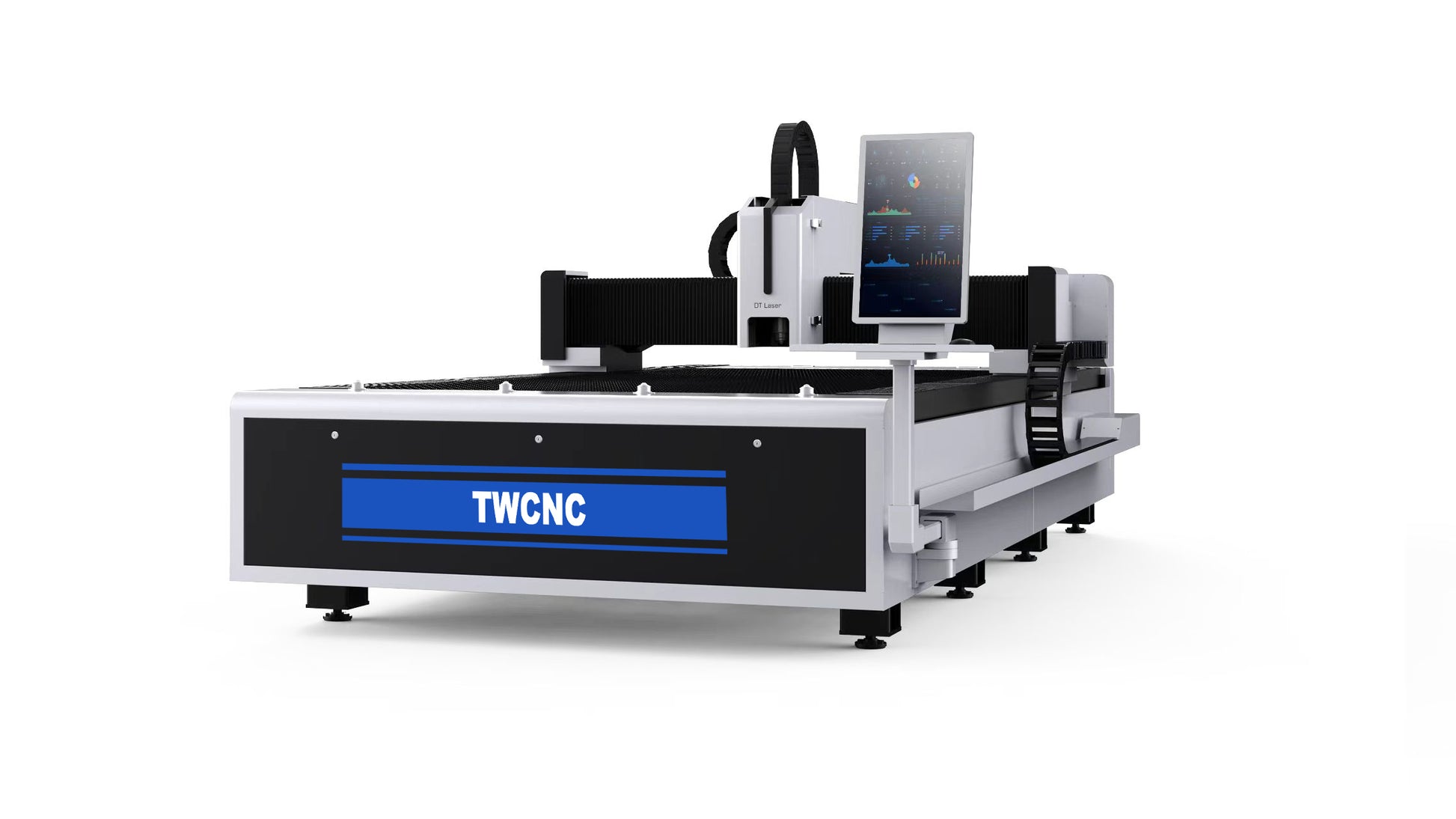

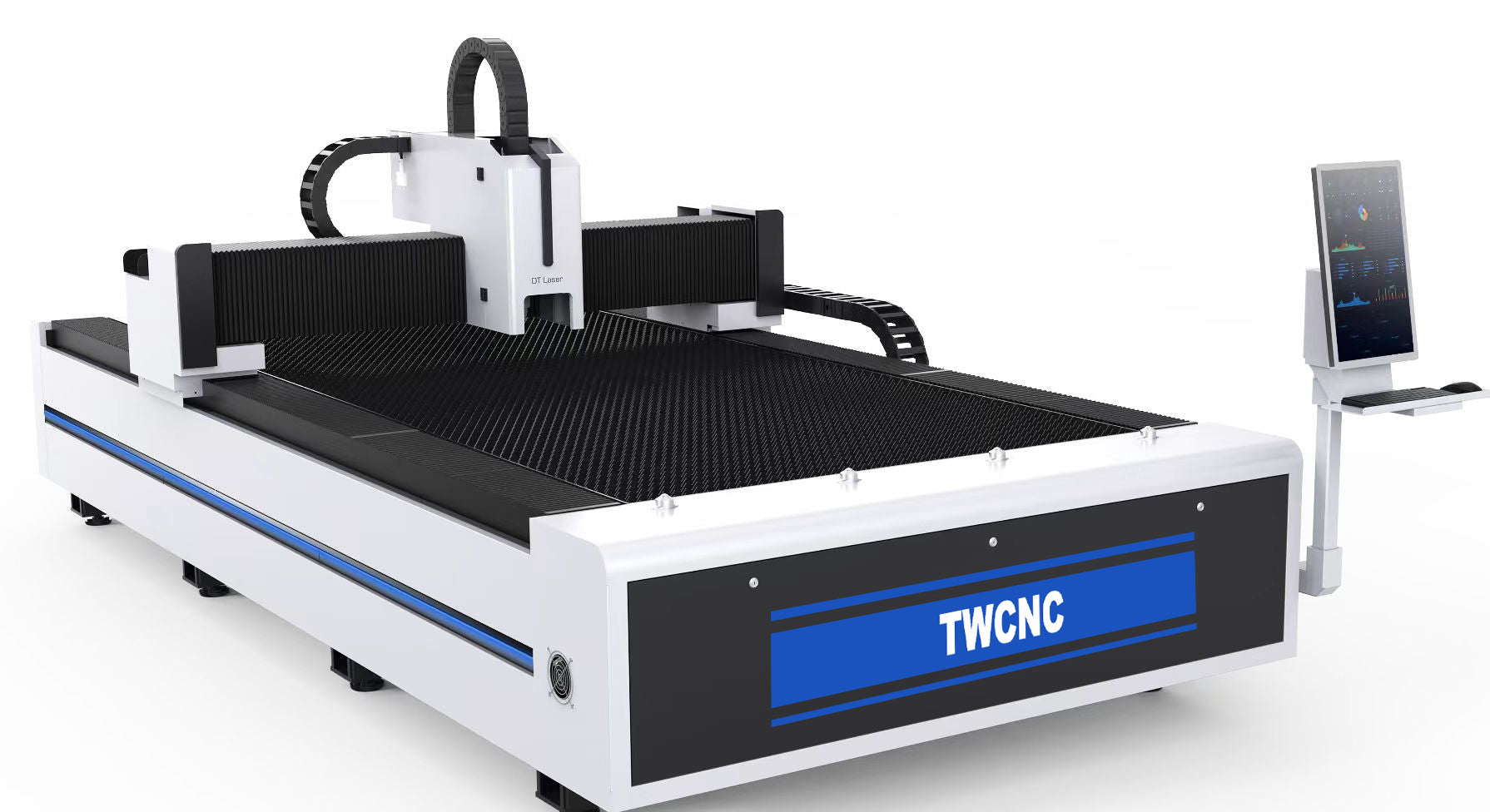

Standard CK series laser cutting machine

Standard CK series laser cutting machine

$1,000.00
$15,000.00 $1,000.00
Sale Sold out

Feature

(1) High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(2) The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(3) The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(4) It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(5) Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.



Application

CK series Fiber laser Cutting Machine meets the parts processing requirements of most industries, working accuracy is stable. At present,laser cutting machines have been widely used in electronics, electrical,mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.



Machine Model TW-3015CK
Cutting Area(length x width) 3000mm×1500mm
Laser Model Fiber laser 1000W/1500W/2000W/3000W
Laser Wavelength 1,070-1,080nm
CS Cutting Thickness Max. 5mm/10mm
SS Cutting Thickness Max. 3mm/5mm
Interface USB,RJ45
X-Axis Moving Speed 50m/min
Stroke 3000mm
Position Accuracy ±0.05mm/m
Repeatability Accuracy 0.05mm
Y-Axis Moving Speed 50m/min
Stroke 1500mm
Position Accuracy ±0.05mm/m
Repeatability Accuracy 0.05mm
Z-Axis Stroke 50mm
Power Supply Requirement 400V/50Hz/30A
Continuous Working Time 24Hours
Machine Weight Approximate 2000kg
Dimension(length×width×height) 4500mm×2300mm×1500mm

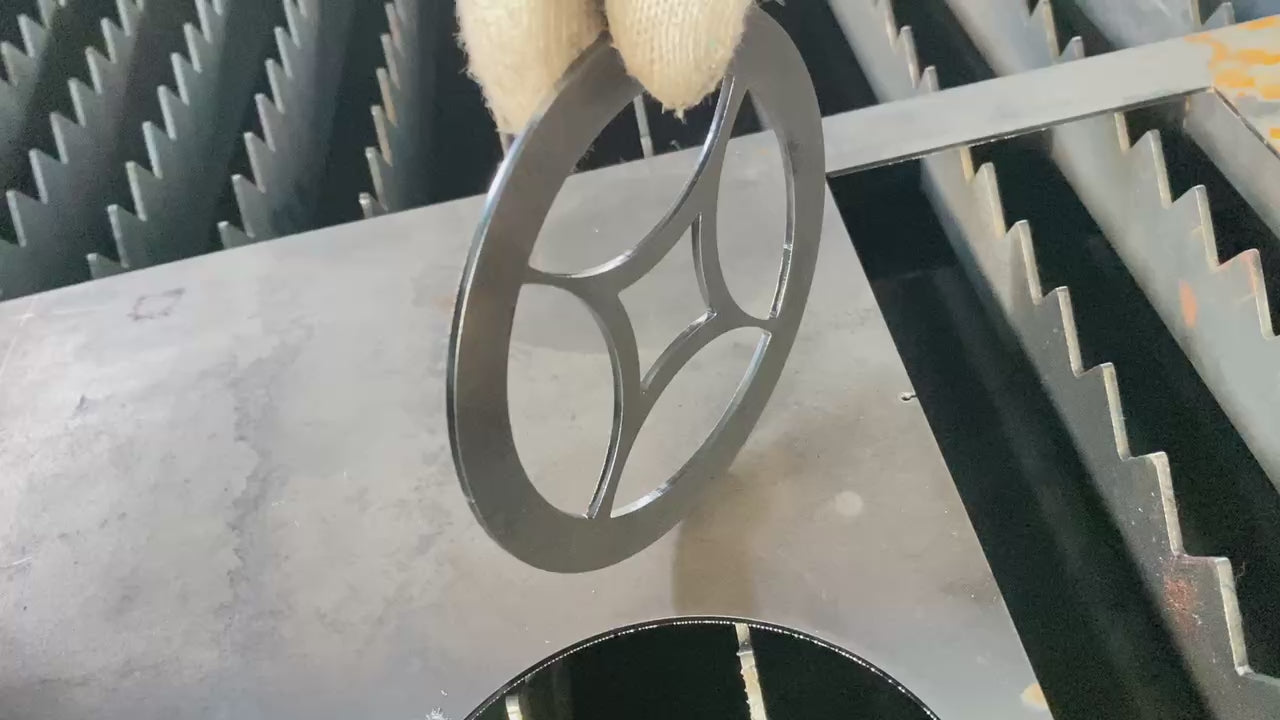

Sample

Used in sheet metal processing, aviation, aerospace, electronics,electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships,

View full details

We provide customers with the following services

MAIN AFTER-SALES SERVICE :

All our laser equipment is provided with 24 months warranty. We TWCNC offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,We TWCNC will send engineers to your factory as soon as possible and only charge the cost of parts.

Installation and debugging & Training

Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.

24H online service

TWCNC promises to provide 7×24 hours service after signing the contract. Respond within 1 hour after receiving the notification, provide solutions within 8 hours for general faults, and provide solutions for complex problems within 24 hours.

Remote diagnosis

We TWCNC can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
