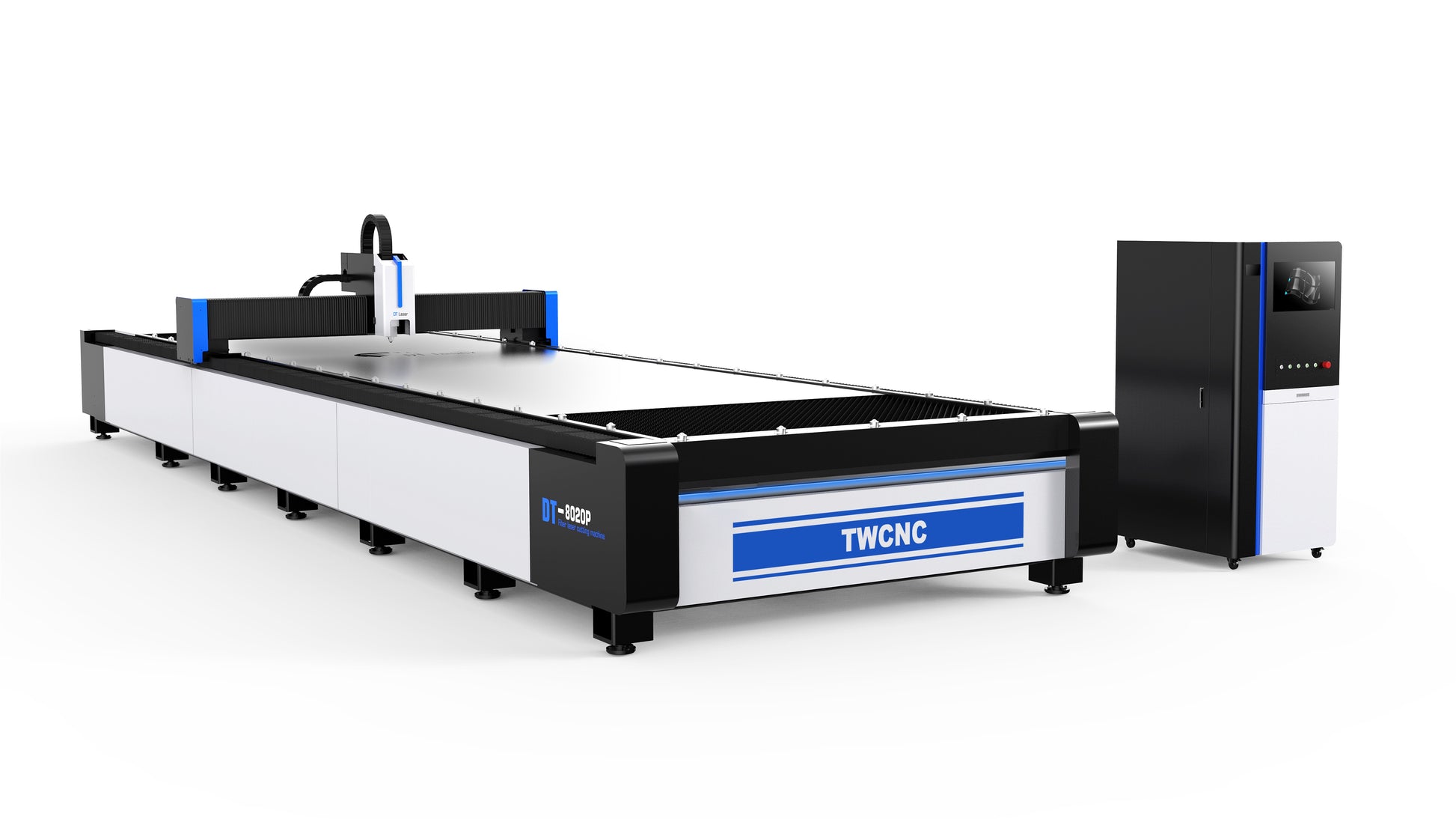

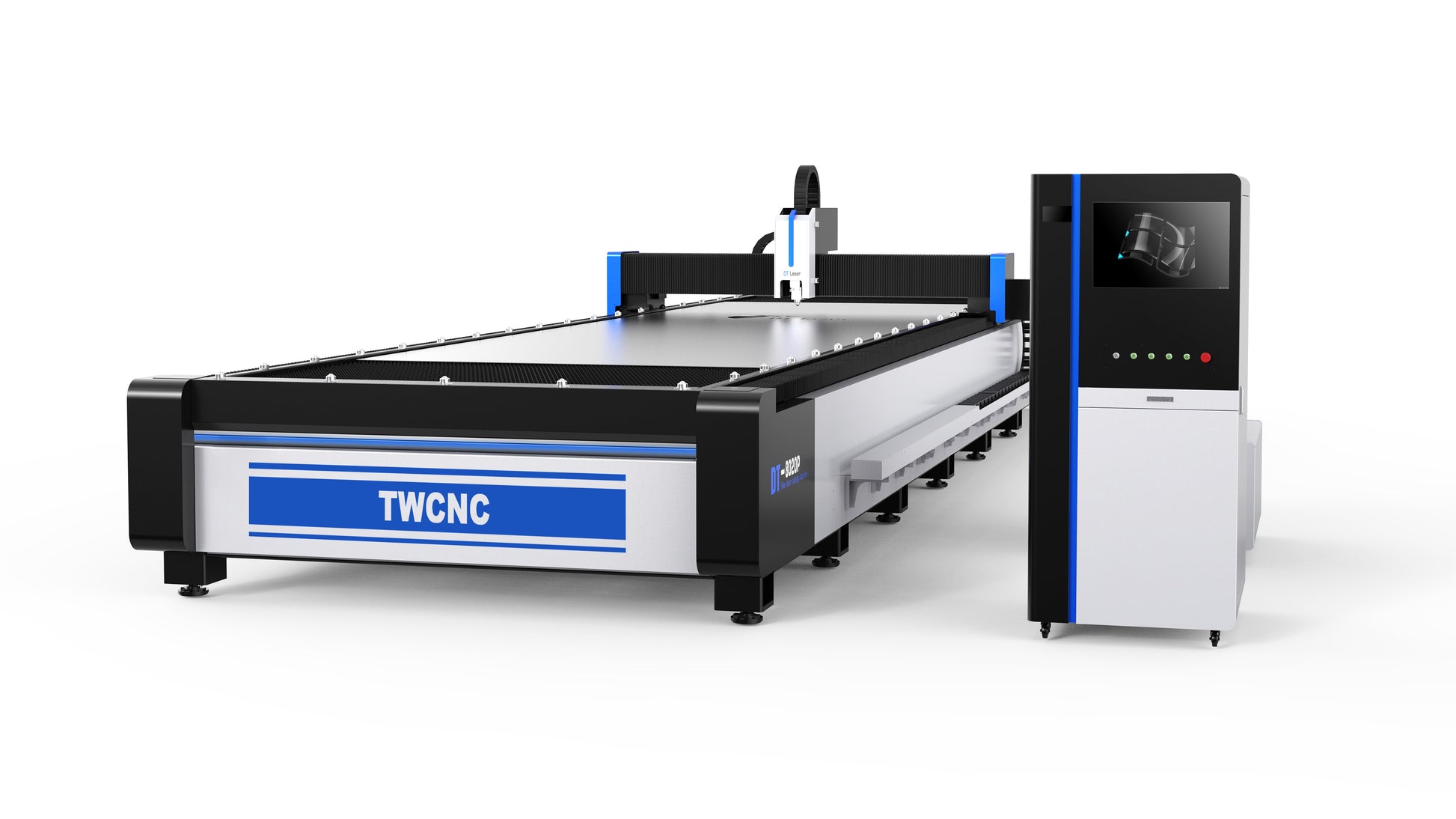

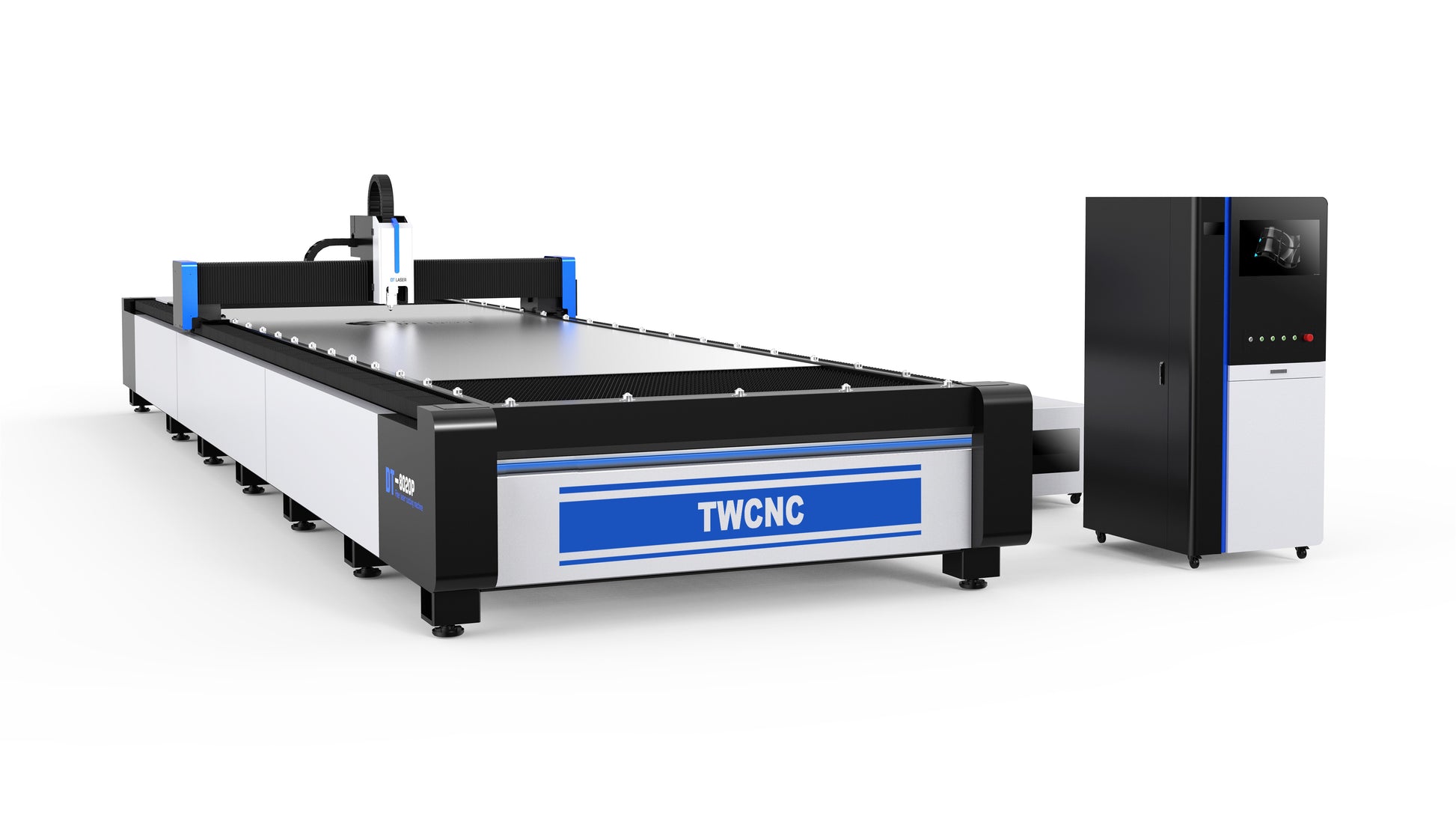

G series industrial laser cutting machine

G series industrial laser cutting machine

$1,000.00
$22,500.00 $1,000.00
Sale Sold out

The G is an ideal entry level planar laser cutting machine.Don't need to input the high purchase cost and training cost, laser cutting can be realized.

Machine Features：
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
5. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
6. It could ut mental in various materials and realize excellent and stable cutting effects.



个
Model
 G series
Working Area
3000*1500mm/4000*1500mm/4000*2000mm/
6000*2000mm
Laser Power
2000W/3000W/4000W/6000W
Laser source
Raycus/IPG/MAX
Transmission system
Double serve motor &gantry&rack&pinion
Motors & Drives
FUJI/YASKAWA
Laser Head
Raytools (auto focus for optional)
Electrical Components
Schneider
Electronic Proportional Valve
SMC
Reducer
Shimpo/Motoreducer
Rack & pinion
YYC
Guide rail
THK
CNC Controller
BCS100 V3.0
Software
CYPCUT
Chiller
S&A/HANLI
Max Idle Speed
100m/min
Max Acceleratio
1.2G
Positioning Accuracy
±0.03mm
Re-Positioning Accuracy
±0.02mm
Gross Power
<35 KW
Power Supply
Three-phase 380V/50Hz/60Hz
Gross Weight
3800KG

View full details

We provide customers with the following services

MAIN AFTER-SALES SERVICE :

All our laser equipment is provided with 24 months warranty. We TWCNC offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,We TWCNC will send engineers to your factory as soon as possible and only charge the cost of parts.

Installation and debugging & Training

Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.

24H online service

TWCNC promises to provide 7×24 hours service after signing the contract. Respond within 1 hour after receiving the notification, provide solutions within 8 hours for general faults, and provide solutions for complex problems within 24 hours.

Remote diagnosis

We TWCNC can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
