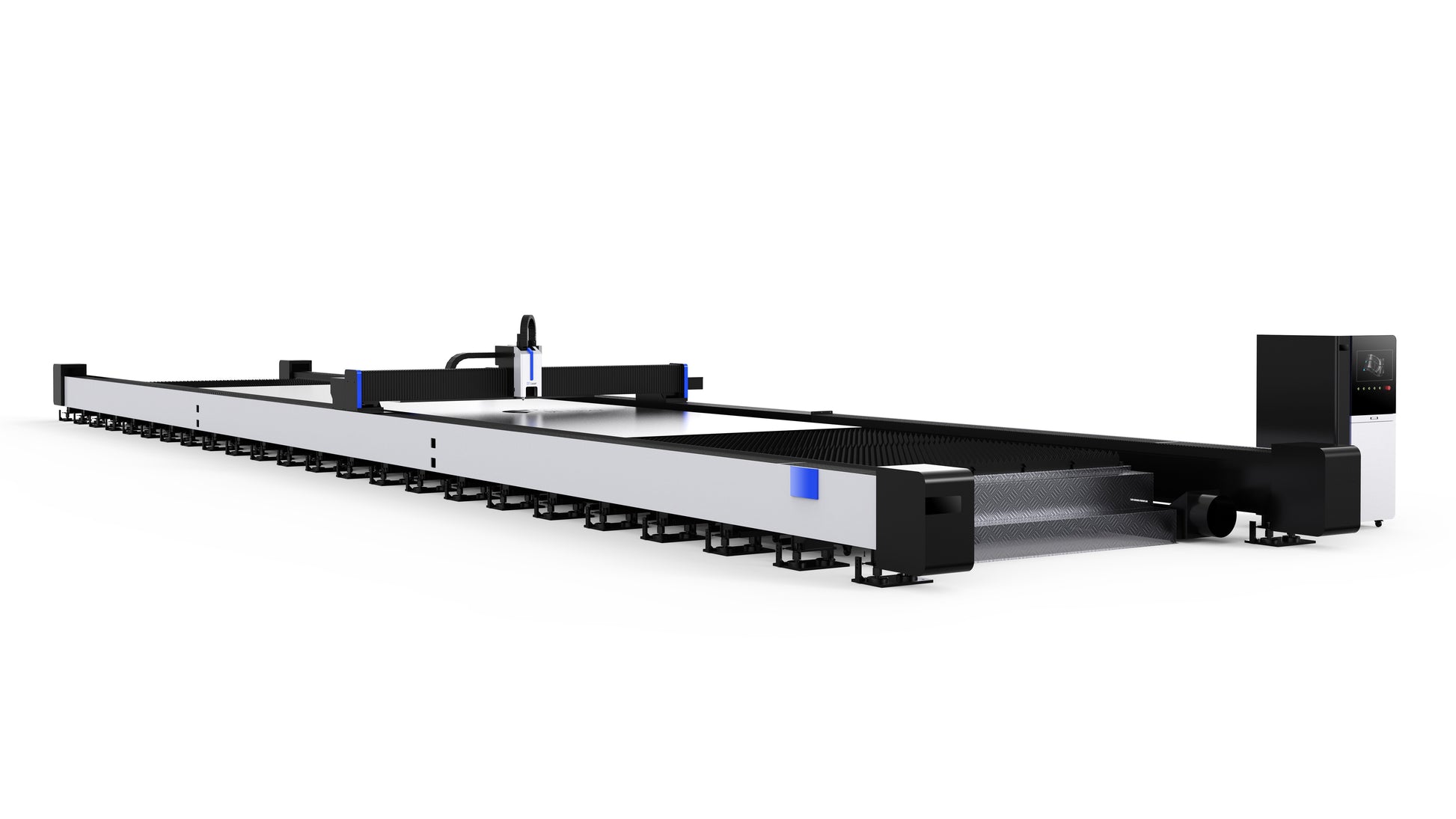

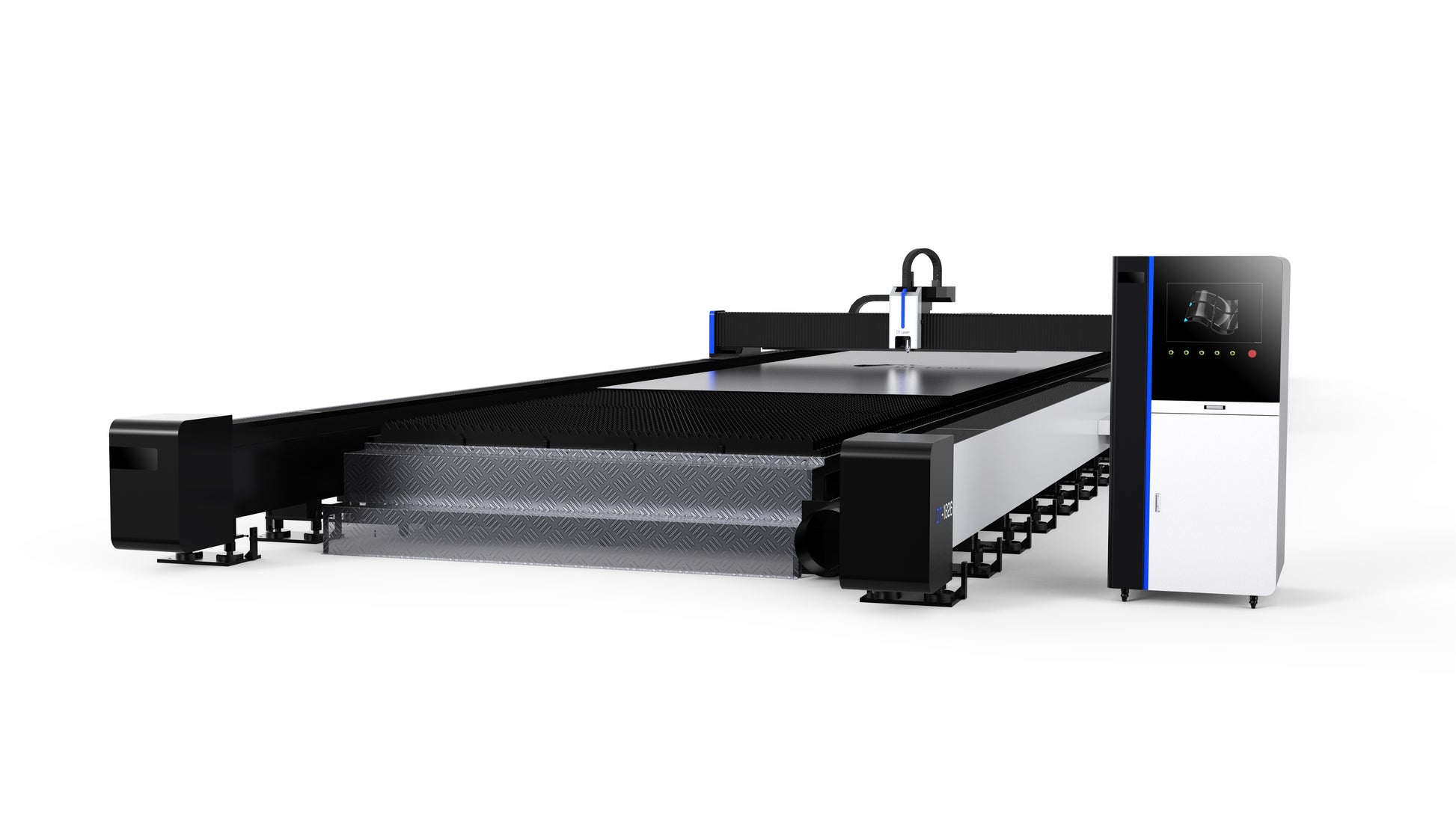

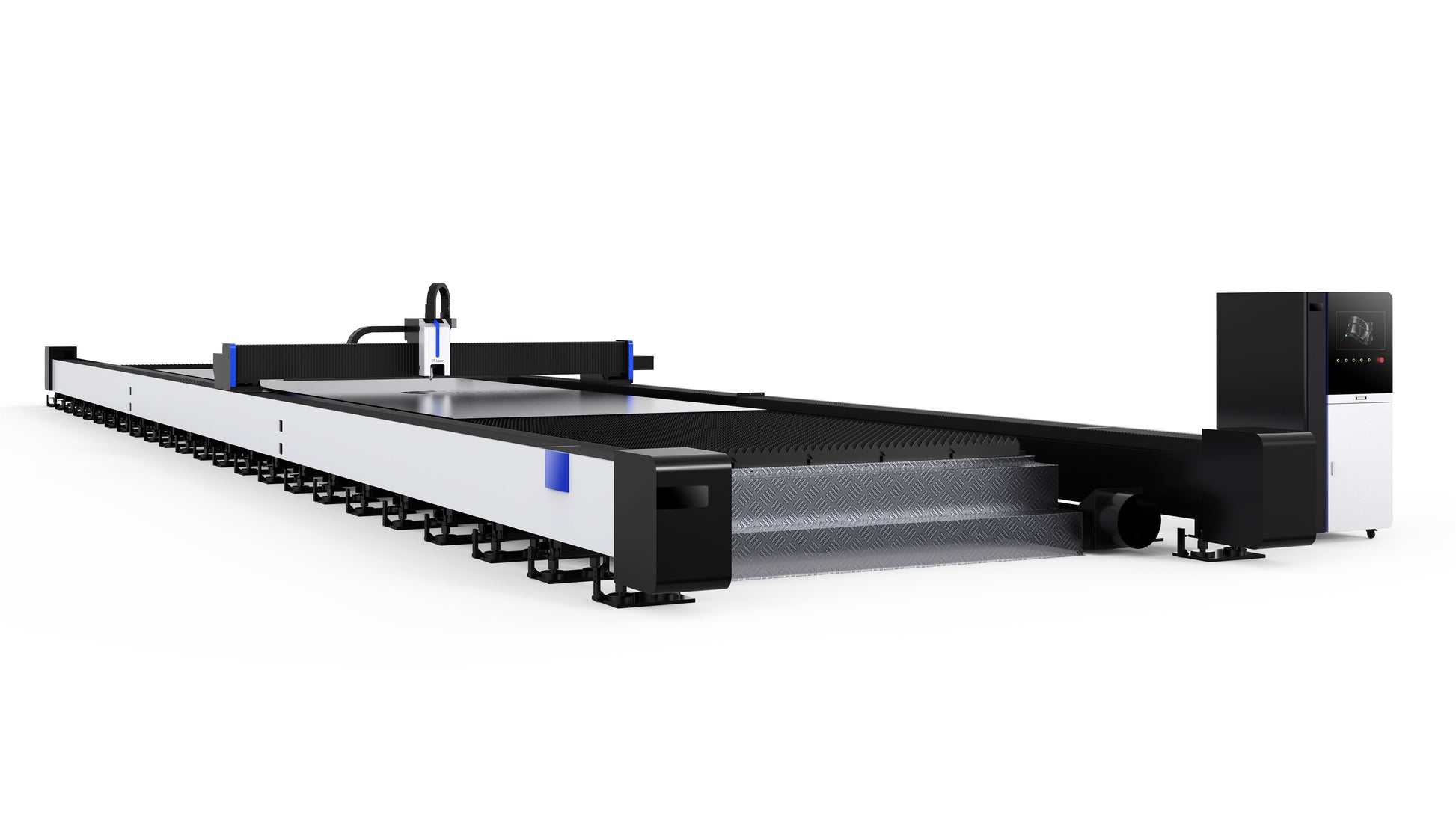

L series large format gantry laser cutting machine

L series large format gantry laser cutting machine

$1,000.00
$1,000.00
En vente Épuisé

1、The machine body is designed with a low center of gravity and compact structure.
2、The maximum fast forward speed can achieve 60m/min
Install a safety light curtain directly in front of the machine body,High security.
Professionally cut system，Simple and convenient operation！
3、Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
4、The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding,customer will have long-term payback.
5、Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.This structure design greatly improves the high speed response, and precision of cutting.

No
Item
Brand
1
Machine cutting table
TWCNC

Laser power
IPG/Max
3
Laser head
Precitec/Boci/max
4
Chiller
Tongfei/Hanli
5
CNC controller
FSCUT8000
6
Gear rack
YYC
7
Rail guide
THK

X/Y/Z axis Servo
Yaskawa/fuji
9
Nesting software
Cypnest
10
Planetary Gearbox
Shimpo
11
Proportional valve
SMC
12
High pressure proportional valve
SMC
13
Pressure valve
Parker
14
Auto height controller
BCS210E
15
Stabilizer

16
Transformer

17
Relay
Schneider
18
Other valves
SMC
19
AC
Tongfei

Can be equipped with 40KW+ laser generator
Single axis acceleration up to 1.2G
The maximum air movement speed of single axis is 100 m/min
The effective processing width can be expanded
Front and rear grating safety protection
Meet the requirements of any groove of A\K\Y\X\V type less than 45 degrees



Afficher tous les détails

We provide customers with the following services

MAIN AFTER-SALES SERVICE :

All our laser equipment is provided with 24 months warranty. We TWCNC offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,We TWCNC will send engineers to your factory as soon as possible and only charge the cost of parts.

Installation and debugging & Training

Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.

24H online service

TWCNC promises to provide 7×24 hours service after signing the contract. Respond within 1 hour after receiving the notification, provide solutions within 8 hours for general faults, and provide solutions for complex problems within 24 hours.

Remote diagnosis

We TWCNC can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
