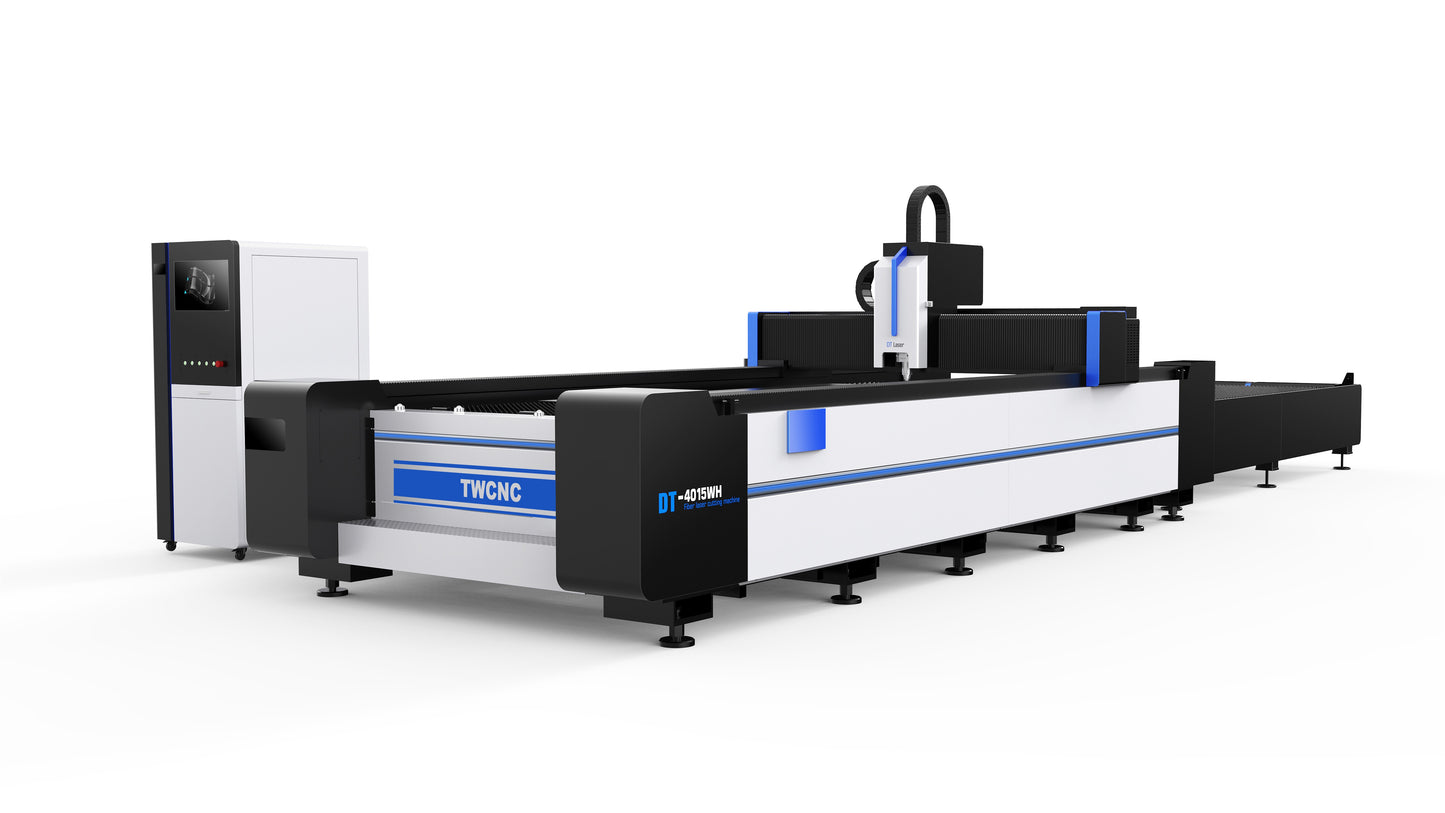

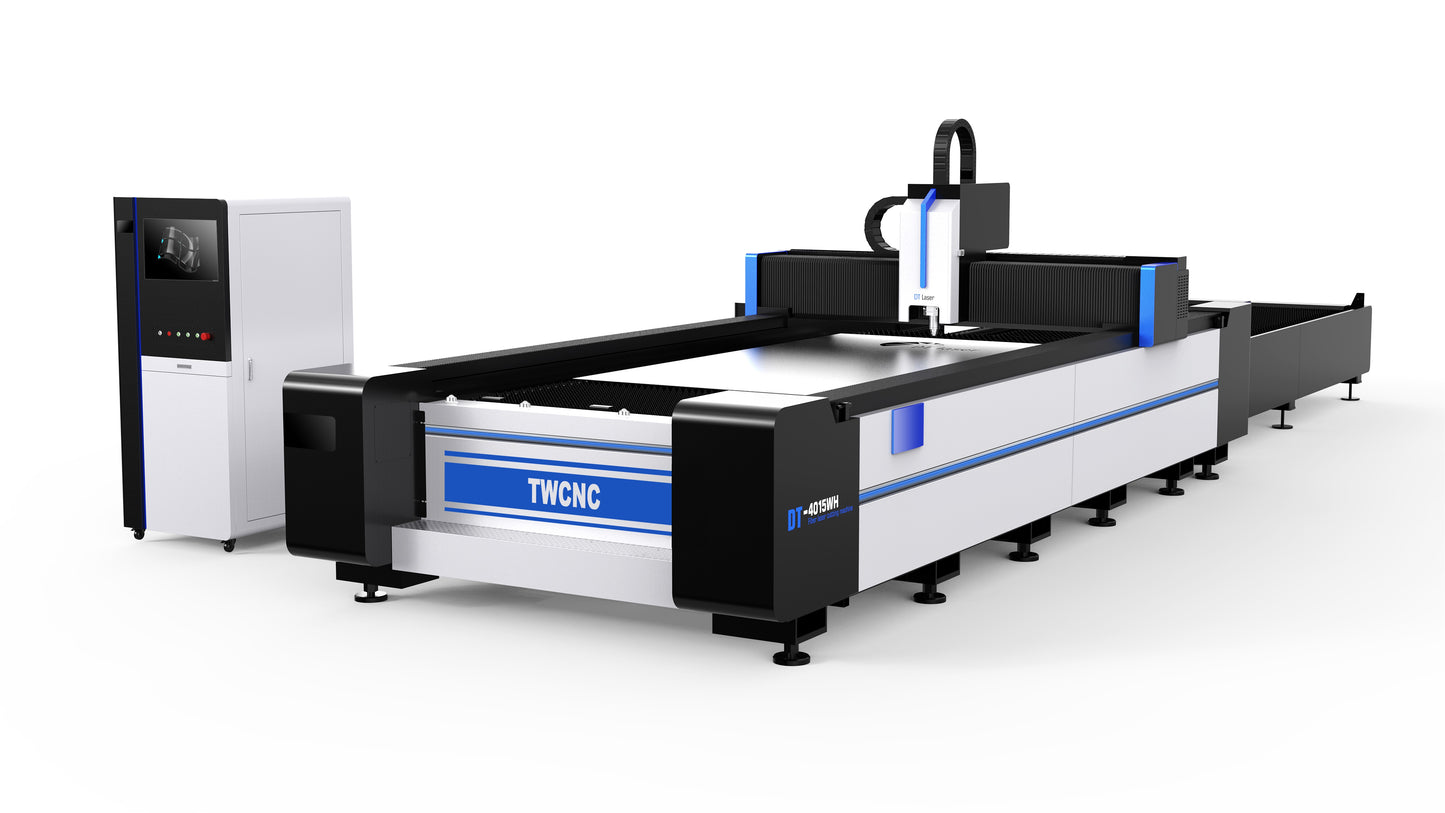

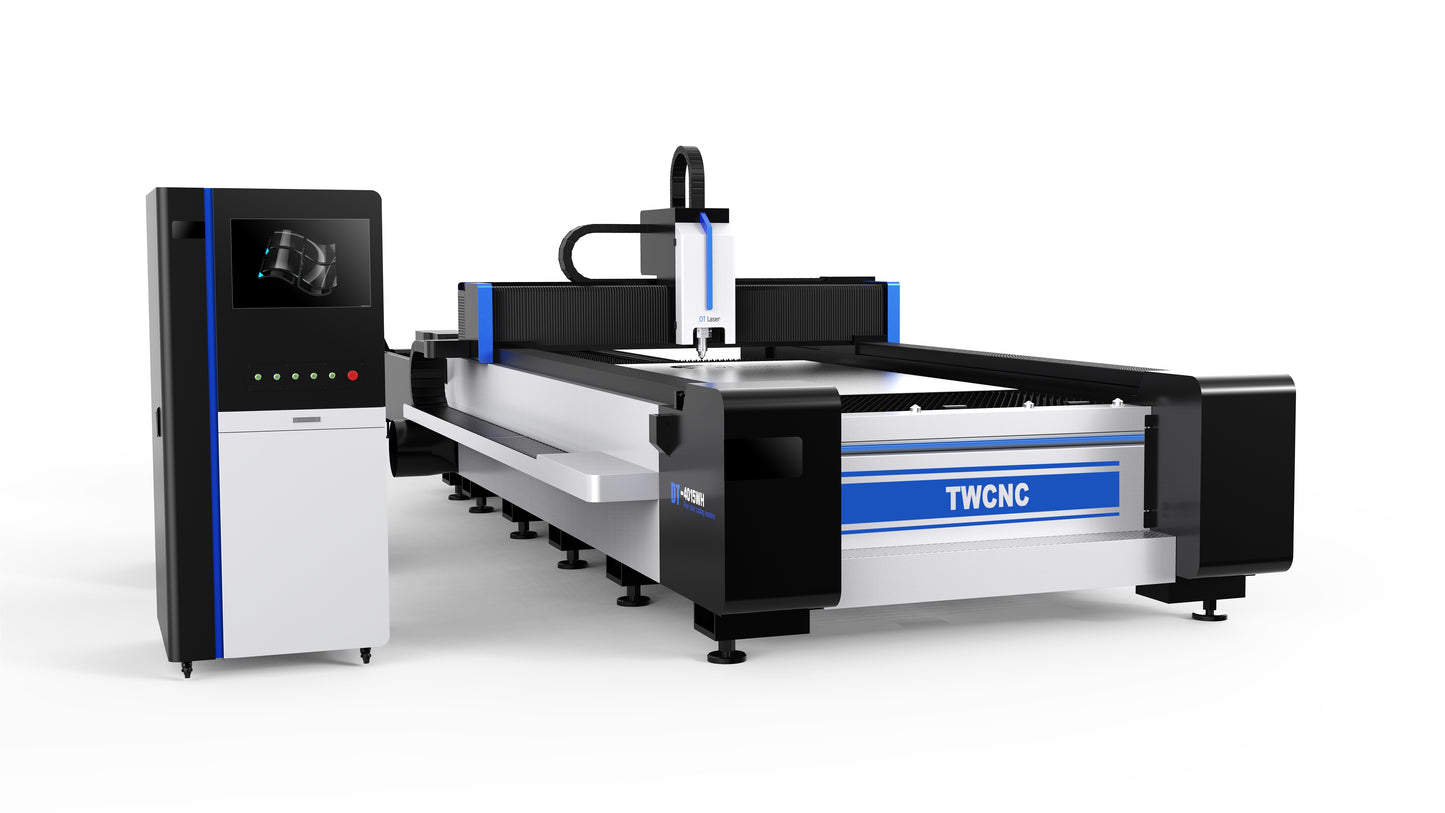

B series open exchange table laser cutting machine
B series open exchange table laser cutting machine
5.0 / 5.0
(15) 15 total des critiques
Advanced Double exchange table professional fiber laser cutting machinery
(1) Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology.
(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut.
Application industry:
Metal cutting, electrical switch manufacturing, elevator manufacturing, household electrical appliance manufacturing,cooking utensils, tools machining , such as a variety of machinery manufacturing and processing industry.
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,
Brass,Sheet, Bronze,Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Model
|
B series
|
Working Area
|
2500X1300mm//3000X1500mm/4000x2000mm
|
Laser Type
|
Original Raycus/MAX/IPG Fiber laser generator
|
Laser Power
|
1500W/2000W/3000W/6000W/12000W/20000W/30000W
|
Transmission
|
Precise pinion and rack, dual-drive transmitting
|
Beam Quality
|
<0.373mrad
|
Positioning Accuracy
|
≤±0.03mm/m
|
Re-positioning Accuracy
|
≤±0.02mm/m
|
Min line width
|
≤0.15mm
|
Cooling System
|
Water cooling
|
Max Speed
|
0-120m/min(depending on material and thickness)
|
Power Supply Rated Voltage
|
3-phase 380V/50Hz
|
Z-axis Stroke
|
100mm/120mm
|
Oil Box
|
Auto oil lubricating system
|
Laser wavelength
|
1070nm
|
Max load-bearing of work table
|
1000KG
|
Machine Weight
|
5000-12000kg
|
Share
![B series open exchange table laser cutting machine](http://www.twcncmachine.com/cdn/shop/products/51.jpg?v=1677551394&width=1445)
![B series open exchange table laser cutting machine](http://www.twcncmachine.com/cdn/shop/products/52.jpg?v=1677551395&width=1445)
![B series open exchange table laser cutting machine](http://www.twcncmachine.com/cdn/shop/products/53.jpg?v=1677551394&width=1445)
We provide customers with the following services
MAIN AFTER-SALES SERVICE :
All our laser equipment is provided with 24 months warranty. We TWCNC offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,We TWCNC will send engineers to your factory as soon as possible and only charge the cost of parts.
Installation and debugging & Training
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24H online service
TWCNC promises to provide 7×24 hours service after signing the contract. Respond within 1 hour after receiving the notification, provide solutions within 8 hours for general faults, and provide solutions for complex problems within 24 hours.
Remote diagnosis
We TWCNC can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
